TRACE32 CombiProbe 2 for Arm® Cortex® -M

TRACE32 CombiProbe 2 for ARM® Cortex®-M

Highlights

• Recommended for debugging of multicore microcontrollers consisting of Cortex-M cores and cores from other architecture
• Recommended for the parallel operation of two Cortex-M microcontrollers in safety-critical applications (hardware redundancy)
• Debug cable and 512 MByte of trace memory
• Whisker MIPI20T for Arm/Cortex and Whisker MIPI34
• Provides TRACE32 AutoFocus capabilty for MIPI34 whisker
• TRACE32 Streaming up to 85 MByte/s
• TRACE32 Mixed Signal Probe supported

The left photo shows the TRACE32 standard configuration with USB3 as host interface. The right photo shows the TRACE32 configuration for Gigabit Ethernet.
Extended Tool Configurations for CombiProbe 2

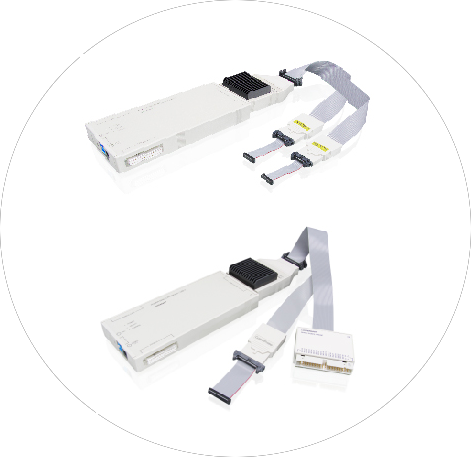

The top configuration in photo shows a configuration with two identical whiskers as it is required for the parallel operation of two Cortex-M microcontrollers in safety-critical applications. The configuration at the bottom shows a TRACE32 Mixed Signal Probe connected to connector B.
